Description

Nr. Art.	Width (mm)	Weight (kg)	Capacity (m3)	Teeth (pcs)
A505.090	900	205	0,36	4
A505.100	1000	215	0,40	5
A505.110	1100	225	0,44	5
A505.120A	1200	245	0,48	6

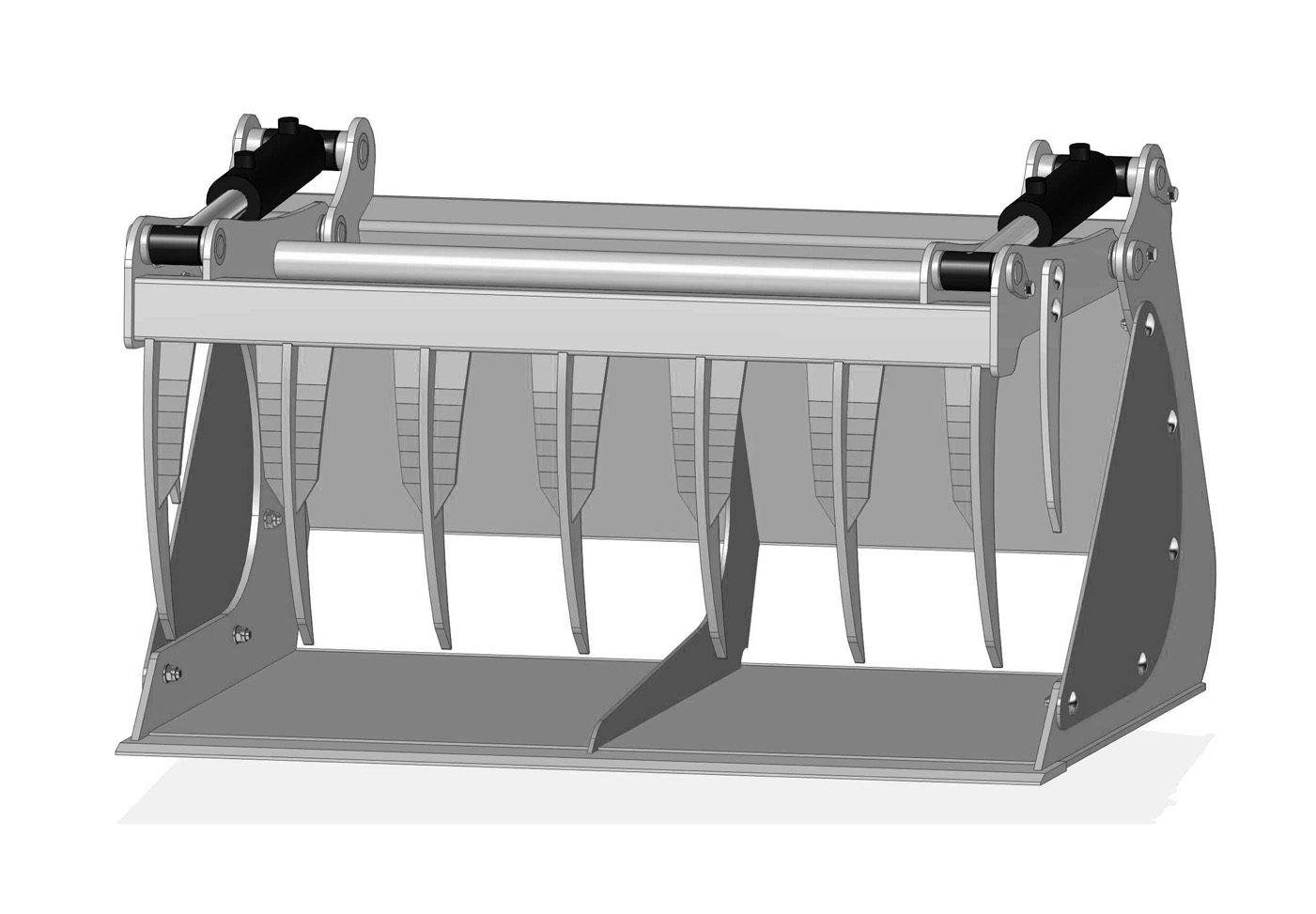

Two hydraulic cylinders
A505.120	1200	255	0,48	6
A505.130	1300	260	0,52	6
A505.140	1400	265	0,56	7
A505.150	1500	275	0,60	7
A505.160	1600	290	0,64	8
A505.180	1800	320	0,72	8
Features
Cover thickness: 4 mm
Side thickness: 10 mm
Cutting edge HB500/110mm x 12 mm
Top teeth are welded
